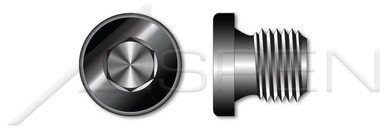

1/8″-28 DIN 908, Metric, Pipe Plugs, Hex Socket Drive, Straight Thread, Steel, Plain
₹154.72
Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings. Also known as Threaded Pipe Fittings or Threaded Screw Plugs. An internal hex socket drive is also known as an Allen drive. Diameter (Nominal): 1/8″ Thread Pitch: 28 Diameter (Dimension): 10mm Length (Nominal): 11mm Thread Length: 8mm Recess Size: 5mm […]
Description
- Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings.
- Also known as Threaded Pipe Fittings or Threaded Screw Plugs.
- An internal hex socket drive is also known as an Allen drive.
- Diameter (Nominal): 1/8″
- Thread Pitch: 28
- Diameter (Dimension): 10mm
- Length (Nominal): 11mm
- Thread Length: 8mm
- Recess Size: 5mm
- Head Diameter: 14mm
- Head Diameter (Minimum): 13.57mm
- Head Diameter (Maximum): 14mm
- Head Height, Overall: 3mm
- Head Height, Overall (Minimum): 3mm
- Head Height, Overall (Maximum): 3.5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Threading: Straight Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Uncoated
- Standards and Specifications: DIN 908
Additional information
| Weight | 3 kg |
|---|---|
| Quantity | Box of 70 |
